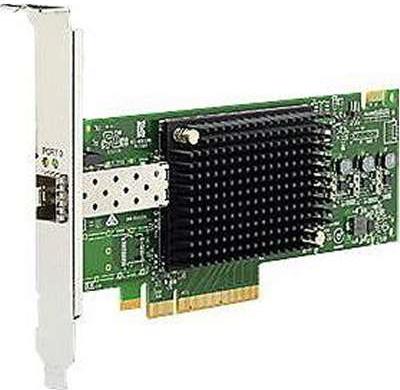

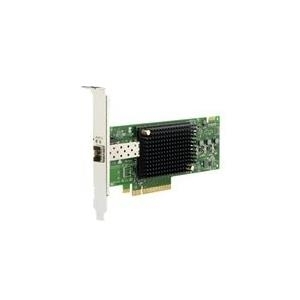

Lenovo Emulex 16Gb (Gen 6) FC Single-port HBA - Hostbus-Adapter - PCIe 3.0 x8 Low-Profile - 16Gb Fibre Channel - für ThinkSystem SR250, SR530, SR630 V2, SR645, SR650 V2, SR665, SR850 V2, ST250, ST650 V2 (01CV830)
Артикул: 26041
| Produktbeschreibung | Emulex 16Gb (Gen 6) FC Single-port HBA - Hostbus-Adapter |
| Gerätetyp | Hostbus-Adapter |
| Formfaktor | Plug-in-Karte - Low Profile |
| Schnittstellentyp (Bustyp) | PCI Express 3.0 x8 |
| Ports | 16Gb Fibre Channel |
| Abmessungen (Breite x Tiefe x Höhe) | 16.8 cm x 6.9 cm |
| Data Link Protocol | 4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel |
| Datenübertragungsrate | 14.025 Gbps |
| Leistung | Maximum IOPS : 1600000 |
| Prozessor | 1 Emulex |
| Systemanforderungen | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 12, VMware vSphere 5.5 Update 2, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, SuSE Linux Enterprise Server 11 SP3 for AMD64/EM64T, VMware vSphere 5.5 update 3, VMware vSphere 6.0 update 1, VMware vSphere 6.0 update 2, Red Hat Enterprise Linux 7 Update 2, Red Hat Enterprise Linux 7 Update 1, Red Hat Linux Enterprise Server 6 Update 7 x64 Edition |
| Entwickelt für | NeXtScale nx360 M5 5465; System x3500 M5 5464; x3550 M5 5463, 8869; x3650 M5 5462, 8871; x3750 M4 8753; x3850 X6 6241; x3950 X6 6241 |
| Gerätetyp | Hostbus-Adapter |
| Formfaktor | Plug-in-Karte - Low Profile |
| Schnittstellentyp (Bustyp) | PCI Express 3.0 x8 |
| Ports | 16Gb Fibre Channel |
| Anschlusstechnik | Verkabelt |
| Data Link Protocol | 4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel |
| Fibre Channel | FC-DA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-Tape, FCP-4, FCP-2, FC-PI-2, FC-GS-5, FCP-3, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-HBA, FC-PI-5, FC-LS-2, FC-DA-2, SSC-2, SBC-2, SPC-3, FC-PI-6, SBC-3, SPC-4, SSC-4 |
| Datenübertragungsrate | 14.025 Gbps |
| Leistung | Maximum IOPS : 1600000 |
| Leistungsmerkmale | Quality of Service (QoS), Single Root I/O Virtualization (SR-IOV), Forward Error Correction (FEC), Extended Message-Signaled Interrupts (MSI-X) |
| Prozessor | 1 Emulex |
| Schnittstellen | 1 x 16Gb Fibre Channel - SFP+ |
| Zubehör im Lieferumfang | Low profile Slotblech, Halterung, volle Höhe, 16 Gb shortwave Fibre Channel SFP+ LC transceiver |
| MTBF | 10,000,000 Stunde(n) |
| Kennzeichnung | ICES-003 Klasse A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07, FCC Part 15 A, BSMI Class A, VCCI Class A, MSIP Class A, China RoHS, EN55024:2010, RCM, RoHS 2011/65/EU, EN55022:2010 Class A, AS/NZS CISPR22:2009+A1 Class A, EN 55032:2012, EN60950-1+A11+A1+A12+A2 |
| Erforderliches Betriebssystem | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 12, VMware vSphere 5.5 Update 2, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, SuSE Linux Enterprise Server 11 SP3 for AMD64/EM64T, VMware vSphere 5.5 update 3, VMware vSphere 6.0 update 1, VMware vSphere 6.0 update 2, Red Hat Enterprise Linux 7 Update 2, Red Hat Enterprise Linux 7 Update 1, Red Hat Linux Enterprise Server 6 Update 7 x64 Edition |
| Tiefe | 16.8 cm |
| Höhe | 6.9 cm |
| Min Betriebstemperatur | 0 °C |
| Max. Betriebstemperatur | 55 °C |
| Zulässige Luftfeuchtigkeit im Betrieb | 5 - 95% (nicht kondensierend) |
| Entwickelt für | Lenovo NeXtScale nx360 M5 5465 Lenovo System x3500 M5 5464 Lenovo System x3550 M5 5463, 8869 Lenovo System x3650 M5 5462, 8871 Lenovo System x3750 M4 8753 Lenovo System x3850 X6 6241 Lenovo System x3950 X6 6241 |
| Brand | Lenovo |
- Длина 16 см.
- Высота 6 см.
- Ширина 16 см.
- Бренд Lenovo
Lenovo Emulex 16Gb (Gen 6) FC Single-port HBA - Hostbus-Adapter - PCIe 3.0 x8 Low-Profile - 16Gb Fibre Channel - für ThinkSystem SR250, SR530, SR630 V2, SR645, SR650 V2, SR665, SR850 V2, ST250, ST650 V2 (01CV830)
65 258 руб.
Без НДС
