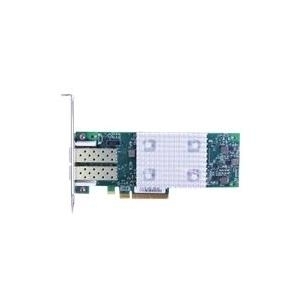

Lenovo QLogic 16Gb FC Dual-Port HBA (Enhanced Gen 5) - Hostbus-Adapter - PCIe 3.0 x8 Low-Profile - 16Gb Fibre Channel x 2 - für ThinkSystem SR250, SR530, SR590, SR630 V2, SR645, SR650 V2, SR665, SR850 V2, ST650 V2 (01CV7 (01CV760)
Артикул: 11779
Наличие и цену уточняйте у менеджера.
| Produktbeschreibung | QLogic 16Gb FC Dual-Port HBA (Enhanced Gen 5) - Hostbus-Adapter |
| Gerätetyp | Hostbus-Adapter |
| Formfaktor | Plug-in-Karte - Low Profile |
| Schnittstellentyp (Bustyp) | PCI Express 3.0 x8 |
| Ports | 16Gb Fibre Channel x 2 |
| Abmessungen (Breite x Tiefe x Höhe) | 16.8 cm x 6.9 cm |
| Data Link Protocol | 4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel |
| Datenübertragungsrate | 14.025 Gbps |
| Leistung | Maximum IOPS : 1300000 |
| Systemanforderungen | Microsoft Windows Server 2012, Red Hat Enterprise Linux 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware vSphere 5.5 Update 2, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, SuSE Linux Enterprise Server 11 SP3 for AMD64/EM64T, VMware vSphere 5.5 update 3, VMware vSphere 6.0, VMware vSphere 6.0 update 1, VMware vSphere 6.0 update 2 |
| Entwickelt für | NeXtScale nx360 M5; System x3500 M5; x3550 M5; x3650 M5; x3750 M4; x3850 X6; x3950 X6 |
| Gerätetyp | Hostbus-Adapter |
| Formfaktor | Plug-in-Karte - Low Profile |
| Schnittstellentyp (Bustyp) | PCI Express 3.0 x8 |
| Ports | 16Gb Fibre Channel x 2 |
| Anschlusstechnik | Verkabelt |
| Data Link Protocol | 4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel |
| Fibre Channel | FC-GS-2, FC-GS-3, FC-Tape, FCP-2, FC-PI-5, SCSI-FCP |
| Datenübertragungsrate | 14.025 Gbps |
| Leistung | Maximum IOPS : 1300000 |
| Leistungsmerkmale | Quality of Service (QoS), Forward Error Correction (FEC), Extended Message-Signaled Interrupts (MSI-X), Fabric-Assigned port WorldWide Name (FA-WWN), Fabric-ased Boot LUN Discovery (F-BLD), Link cable beacon (LCB) |
| Schnittstellen | 2 x 16Gb Fibre Channel |
| Zubehör im Lieferumfang | Low profile Slotblech, Halterung, volle Höhe, 16 Gb shortwave Fibre Channel SFP+ LC transceiver |
| Kennzeichnung | ICES-003 Klasse A, UL 60950-1 Second Edition, FCC Part 15 A, BSMI Class A, KCC Class A, VCCI Class A, EN55024:2010, EN55022:2010 Class A, AS/NZS CISPR22:2009+A1 Class A, CAN/CSA C22.2 No. 60950-1-07 Second Edition 2011-12, EN60950-1:2006 +A11+A1+A12 (2nd Edition) |
| Erforderliches Betriebssystem | Microsoft Windows Server 2012, Red Hat Enterprise Linux 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware vSphere 5.5 Update 2, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, SuSE Linux Enterprise Server 11 SP3 for AMD64/EM64T, VMware vSphere 5.5 update 3, VMware vSphere 6.0, VMware vSphere 6.0 update 1, VMware vSphere 6.0 update 2 |
| Tiefe | 16.8 cm |
| Höhe | 6.9 cm |
| Min Betriebstemperatur | 0 °C |
| Max. Betriebstemperatur | 55 °C |
| Zulässige Luftfeuchtigkeit im Betrieb | 10 - 90% (nicht-kondensierend) |
| Entwickelt für | Lenovo NeXtScale nx360 M5 Lenovo System x3500 M5 Lenovo System x3550 M5 Lenovo System x3650 M5 Lenovo System x3750 M4 Lenovo System x3850 X6 Lenovo System x3950 X6 |
| Brand | Lenovo |
- Длина 16 см.
- Высота 6 см.
- Ширина 16 см.
- Бренд Lenovo
