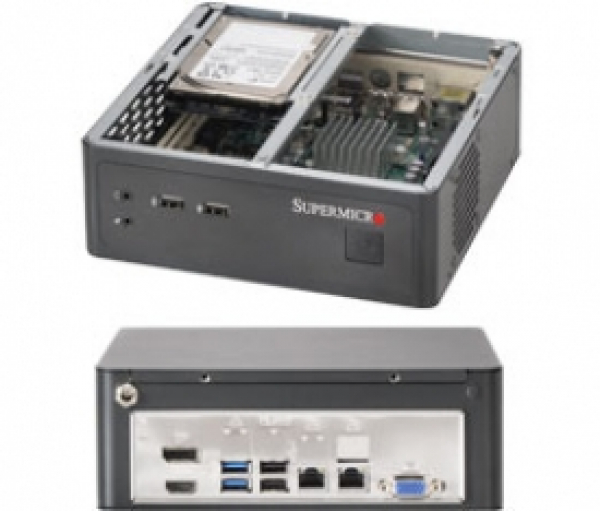

IoT Gateway Supermicro SYS-1017A-MP • CSE-101i • X9SCAA
Артикул: 708173
| Manufacturer | Supermicro |
| SKU | SYS-1017A-MP |
| Qty | Product name |
| 1 | Chassis: CSE-101i |
| 1 | Motherboard: X9SCAA # |
| Basic wiring | |
| Dimensions (HxWxD) | 2.68"x7.68"x7.68" (68mm x 195mm x 195mm) |
| Power Supply | 60W DC |
| Memory support limit | 4GB DDR3 |
| Slots for disks | 1x2.5" |
| Product name | X9SCAA |
| More info at manufacturer site | Click here to view Broken link? Report us. |
| Chipset | nm10 |
| Format | Mini-ITX |
| Size | 6.75" x 6.75" |
| Expansion slots # | 1 |
| CPU socket | FCBGA559 |
| CPU family | Intel Atom N2800 FCBGA559 |
| CPU builtin | Yes |
| Max. CPU # | 1 |
| SNK shape | Square |
| Max. memory size support | 4 GB |
| Memory sockets # | 2 |
| Memory correction support | NON-ECC |
| Memory size type support | SODIMM |
| Memory type support | DDR3 |
| SATA support | Yes |
| SATA sockets # | 2 |
| SAS support | No |
| NIC # | 2 |
| Chipset | Type |
| 82574L | 1GbE |
| 82574L | 1GbE |
| Hardaware RAID | No |
| IPMI | No |
| VGA | Yes |
| Supported RSC | CSE-RR32-1U |
| Application | Cost-effective |
| Power consumption | 50 W |
