| Manufacturer | Supermicro |

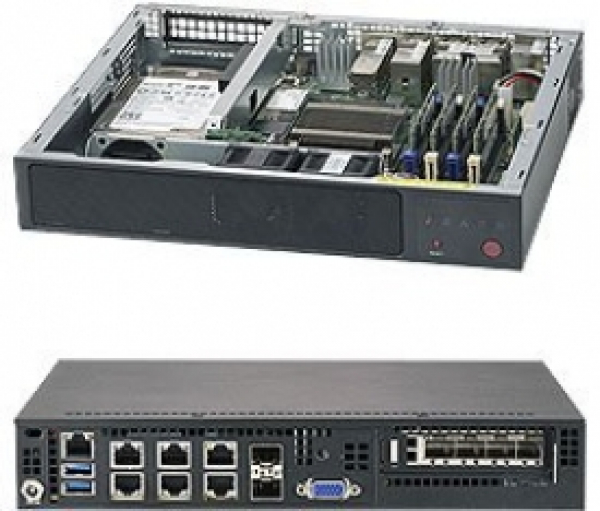

| SKU | SYS-E300-9A |
| Qty | Product name |
| 1 | Chassis: CSE-E300 |
| 1 | Motherboard: A2SDi-TP8F # |
| Basic wiring | |
| Dimensions (HxWxD) | 1.7"x10"x8.9" (43mm x 254mm x 226mm) |
| Power Supply | 84W DC |
| Memory support limit | 64GB DDR4 |
| Slots for disks | 2x2.5", 1xM.2 M Key 2242/2280 |
| Product name | A2SDi-TP8F |
| More info at manufacturer site | Click here to view Broken link? Report us. |
| Chipset | SoC |
| Format | Mini-ITX |
| Size | 6.75" x 6.75" |
| Expansion slots # | 1 |
| CPU socket | FCBGA1310 |
| CPU family | Intel Atom C3858 FCBGA1310 |
| CPU builtin | Yes |
| Max. CPU # | 1 |
| SNK shape | Standard |
| Max. memory size support | 64 GB |
| Memory sockets # | 4 |
| Memory correction support | EU |
| Memory size type support | SODIMM |
| Memory type support | DDR4 |
| SATA support | Yes |
| SATA sockets # | 4 |
| SAS support | No |
| NIC # | 8 |
| Chipset | Type |
| Intel C3000 SoC | 10GbE |
| Intel C3000 SoC | 10GbE |
| Intel C3000 SoC | 10GbE |
| Intel C3000 SoC | 10GbE |
| I350-AM4 | 1GbE |
| I350-AM4 | 1GbE |
| I350-AM4 | 1GbE |
| I350-AM4 | 1GbE |
| Hardaware RAID | No |
| IPMI | Yes |
| VGA | Yes |
| Supported RSC | N/D |
| Application | Routing, Cost-effective |
| Power consumption | 50 W |
