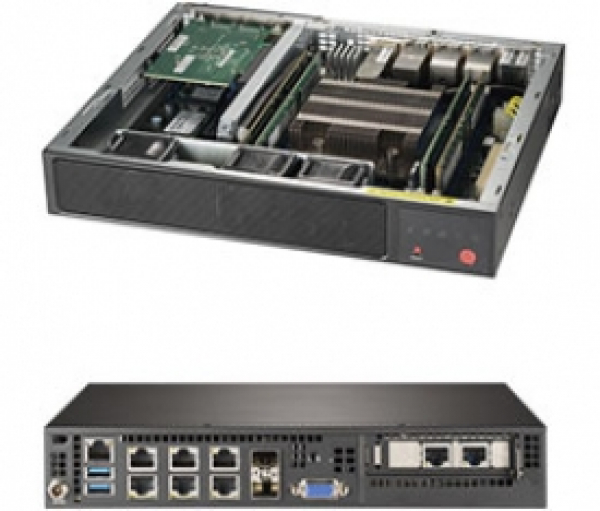

IoT Gateway Supermicro SYS-E300-9D-8CN8TP • CSE-E300 • X11SDV-8C-TP8F
Артикул: 708552
| Manufacturer | Supermicro |
| SKU | SYS-E300-9D-8CN8TP |
| Qty | Product name |
| 1 | Chassis: CSE-E300 |
| 1 | Motherboard: X11SDV-8C-TP8F # |
| Basic wiring | |
| Dimensions (HxWxD) | 10" (254mm)x1.7" (43mm)x8.9" (226mm) |
| Power Supply | 80W DC |
| Memory support limit | 512GB DDR4 |
| Slots for disks | 1 PCI-E 3.0 x8 slot |
| Product name | X11SDV-8C-TP8F |
| More info at manufacturer site | Click here to view Broken link? Report us. |
| Chipset | SoC |
| Format | Flex-ATX |
| Size | 9.6" x 7.5" |
| Expansion slots # | 2 |
| CPU socket | FCBGA2518 |
| CPU family | Intel Xeon D-2146NT FCBGA2518 |
| CPU builtin | Yes |
| Max. CPU # | 1 |
| SNK shape | Standard |
| Max. memory size support | 256 GB |
| Memory sockets # | 4 |
| Memory correction support | ER |
| Memory size type support | DIMM |
| Memory type support | DDR4 |
| SATA support | Yes |
| SATA sockets # | 4 |
| SAS support | No |
| NIC # | 6 |
| Chipset | Type |
| i350 | 1GbE |
| i350 | 1GbE |
| i350 | 1GbE |
| i350 | 1GbE |
| SoC | 10GbE |
| SoC | 10GbE |
| Hardaware RAID | No |
| IPMI | Yes |
| VGA | Yes |
| Supported RSC | N/D |
| Application | High-efficiency |
| Power consumption | 80 W |
