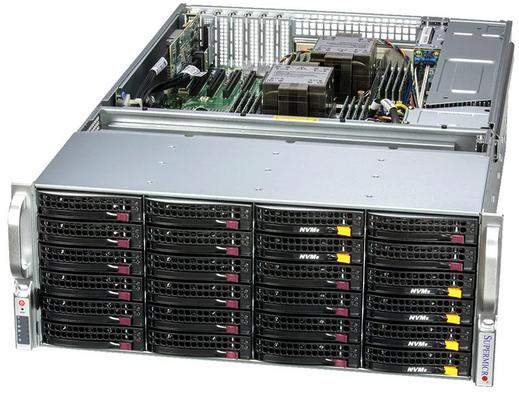

Server Supermicro SSG-641E-E1CR36H Storage • 847BTS-R1K68LPBP5 • X13DEI-T • 4U IPMI
Артикул: 758979
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1 V |
| Chipset | Intel® C741 |
| Network Connectivity | 2x 10GbE BaseT with Broadcom BCM57416 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| NVMe | Yes |
| LAN | 1 RJ45 Dedicated IPMI LAN port 2 Onboard 10 GbE LAN Ports |
| USB | 4 USB 3.0 port(s) (4 Rear_USB) |
| Video | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 rear) |
| DOM | 2 SuperDOM (Disk on Module) port |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Software | IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API |
| Power Configurations | ACPI Power Management Power-on mode for AC power recovery |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| CPU | 7+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Manufacturer | Supermicro |
| SKU | SSG-641E-E1CR36H |
| Qty | Product name |
| 1 | Chassis: 847BTS-R1K68LPBP5 # |
| 1 | Motherboard: X13DEI-T # |
| 1(2) | CPU Heat Sink: SNK-P0088AP4 |
| Basic wiring | |
| Power type | AC |
| NVMe support | No |
| NGSFF support | No |
| Family | Storage |
| Product name | 847BTS-R1K68LPBP5 |
| More info at manufacturer site | Click here to view Broken link? Report us. |
| U size | 4U |
| Expansion slots # | 6 |
| Motherboard formats support | E-ATX |
| Motherboard sizes support | 12.1" x 13" |
| Redundant power supply | Yes |
| Power supply power | 1600 W |
| Power supply type | AC |
| Hot-Swap | Yes |
| Max. drives # | 36 |
| 3,5" drives support | Yes |
| 2,5" drives support | Yes |
| SATA support | Yes |
| SAS support | Yes |
| CD/DVD drive installation possibility | No |
| SAS controller required | No |
| Application | High-efficiency, Cost-effective |
| Product name | X13DEI-T |
| More info at manufacturer site | Click here to view Broken link? Report us. |
| Chipset | C741 |
| Format | E-ATX |
| Size | 12.1" x 13" |
| Expansion slots # | 6 |
| CPU socket | LGA4677 |
| CPU family | 5th Intel Xeon Scalable |
| CPU builtin | No |
| Max. CPU # | 2 |
| SNK shape | Narrow |
| Max. memory size support | 4096 GB |
| Memory sockets # | 16 |
| Memory correction support | ER |
| Memory size type support | DIMM |
| Memory type support | DDR5 |
| SATA support | Yes |
| SATA sockets # | 10 |
| SAS support | No |
| NIC # | 2 |
| Chipset | Type |
| BCM57416 | 1GbE |
| BCM57416 | 1GbE |
| Hardaware RAID | No |
| IPMI | Yes |
| VGA | Yes |
| Supported RSC | N/D |
| Application | High-efficiency, Cost-effective |
| Power consumption | 350 W |
Server Supermicro SSG-641E-E1CR36H Storage • 847BTS-R1K68LPBP5 • X13DEI-T • 4U IPMI
990 444 руб.
Без НДС
