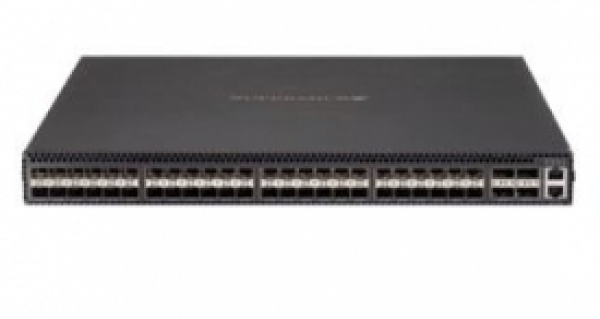

Switch Supermicro SE-X3348S • 1284Gbps • 48x10Gbps SFP+, 4x40Gbps QSFP, 2x1Gbps RJ45, 1xRS-232 • A/C
Артикул: 707618
| Manufacturer | Supermicro |
| SKU | SE-X3348S |
| Description | Switching Features: - Link Aggregation - 24 groups w/ 8 members per group - LACP Support - MLAG Support - Link Layer Discovery Protocol (802.1AB) - Jumbo Frame Support - Port Mirroring - N to 1. Tx & Rx Configurable Routing Features: - Static Routing, RIP v1/v2, RIPng, OSPF v1/v2/v3 & BGP - IPv4 and IPv6 Routing - VRRP (Virtual Router Redundancy Protocol) - DVMRP (Distance Vector Multicast Routing Protocol Port Attributes: - 48 Ten Gigabit Ethernet ports - SFP+ Connectors - 4 Forty-Gigabit Ethernet ports - QSFP Connectors - 2 One-Gigabit Ethernet ports - RJ45 Connectors - Out-of-band RS-232 Management port Performance: - Switching capacity: 1284 Gbps Availability: - Spanning Tree (802.1D) - Rapid Spanning Tree (802.1w) - Multiple Spanning Trees (802.1s) - Virtual Redundant Routing Protocol (VRRP) VLAN: - 802.1Q tagging, port and protocol based - 4K VLANs - Dynamic VLAN Support (GVRP) Quality of Service and DiffServ: - 8 priority queues per port - Adjusted WRR and Strict Priority Scheduling - Layer 2 / 3 / 4 Prioritization - Marking - Metering / Rate limiting Multicast: - IGMP Snooping v1/ v2/ v3 - IGMP v1/ v2/ v3 - PIM SM, PIM DM - PIM SMv6 Security: - 802.1x Port Based Authentication - Switch access password protection - Layer 2 / 3 / 4 Access control Lists - RADIUS and TACACS+ Authentication - SSH / SSL Encryption Management: - Web-based management interface - HTTP, HTTPS - Telnet (4 sessions) - Industry standard CLI with telnet, SSH or local management port - Scripting capability - Command completion - Context sensitive "Help" - Multiple levels of user privileges (CLI and Web UI) - SNMP v1/v2/v3 - Four RMON Groups - (1, 2, 3 and 9) - Logging - syslog - Dual firmware images - Configuration file - upload / download Dimensions: - 17.3" W x 18.6" D x 1.7" H (440mm W x 473mm D x 43mm H) Weight: - 18.1 lbs / 8.18 kg Power: - Dual 400W Hot-swap Redundant Power Supplies - Power Consumption of 326W Operating Temperature: - 0°C to 40°C |
| Ports | 48x10Gbps SFP+, 4x40Gbps QSFP, 2x1Gbps RJ45, 1xRS-232 |
| Switching capacity | 1.25Tbps |
| Type of cooling | Air - Regular (front to back) |
| Power type | A/C |
| Max. power consumption | 326 W |
| Is FAN? | Yes |
| Management ports # | 1 |
Switch Supermicro SE-X3348S • 1284Gbps • 48x10Gbps SFP+, 4x40Gbps QSFP, 2x1Gbps RJ45, 1xRS-232 • A/C
1 152 202 руб.
Без НДС
