Anschlüsse
|

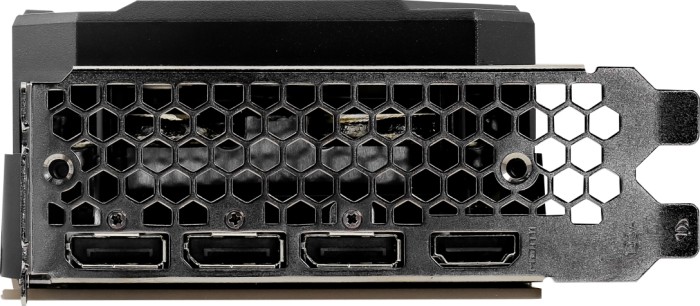

1x HDMI 2.1, 3x DisplayPort 1.4a
|
Grafik
|
NVIDIA GeForce RTX 3080 - 12GB GDDR6X - Desktop
|
Chip
|
GA102-220-A1 "Ampere", 70SM, 628mm²
|
Fertigung
|
8nm (Samsung)
|
Chiptakt
|
1260MHz, Boost: 1710MHz
|
Speicher
|
12GB GDDR6X, 1188MHz, 19Gbps (19008MHz effektiv), 384bit, 912GB/?s
|
Shader-Einheiten/TMUs/ROPs
|
8960/?280/?112
|
TDP/TGP
|
350W (NVIDIA), 350W (Palit)
|
Externe Stromversorgung
|
2x 8-Pin PCIe
|
Kühlung
|
3x Axial-Lüfter (90mm)
|
Gesamthöhe
|
Triple-Slot (2.7 Slots)
|
Abmessungen
|
294x112x60mm
|
Besonderheiten
|
Echtzeit-Raytracing, Raytracing Cores (70), Tensor Cores (280), NVIDIA G-Sync, NVIDIA VR-Ready, AV1 Decode, HDCP 2.3, 0dB-Zero-Fan-Modus, Backplate, LED-Beleuchtung (RGB), inkl. Grafikkarten-Halterung
|
Schnittstelle
|
PCIe 4.0 x16
|
Rechenleistung
|
30.64 TFLOPS (FP32), 479 GFLOPS (FP64)
|
DirectX
|
12 Ultimate (12_2)
|
OpenGL
|
4.6
|
OpenCL
|
3.0
|
Vulkan
|
1.2
|
Shader Modell
|
6.6
|
Brand
|
Palit
|
